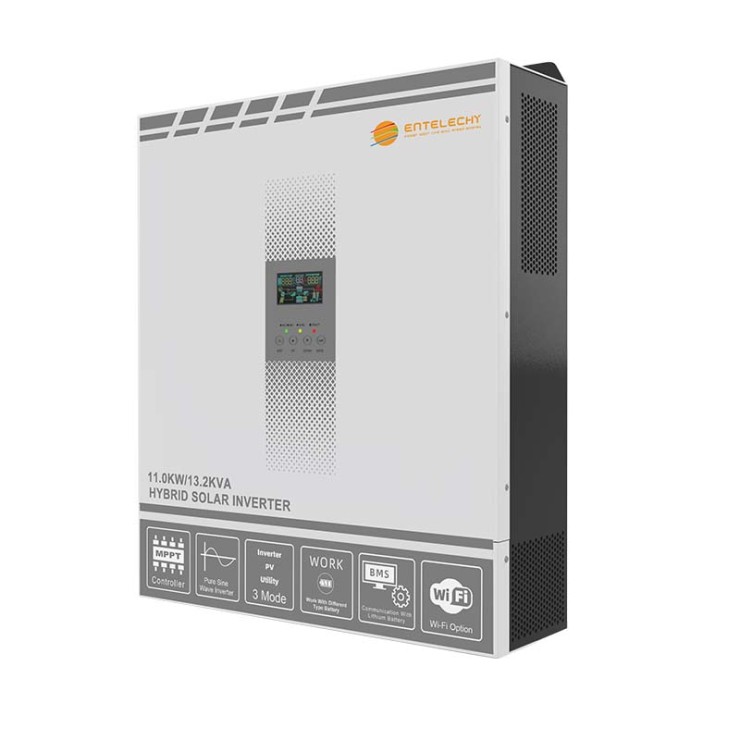

11.0KW/13.2KVA Hybrid Solar Inverter

The BST-HPL-11000W Hybrid Solar Inverter is a high-capacity solution designed for large homes, commercial facilities, and industrial applications. Equipped with dual MPPT trackers and a high PV input capacity, it ensures maximum solar energy harvest and system scalability.

It's 48V battery system, powerful surge handling capability, and advanced communication interfaces make it ideal for demanding loads and professional solar installations.

Key Features

·         High-capacity 11000W output for large homes & commercial use

·         48V battery architecture for superior performance

·         Dual MPPT solar input for optimized energy capture

·         150A max solar charging current

·         Pure sine wave industrial-grade output

·         High surge capability (supports heavy startup loads)

·         Parallel operation capability (system expansion)

·         Smart monitoring with communication ports (RS232 / optional WiFi)

·         Fast switching time ≤10ms

·         Advanced protection: overload, over-voltage, short circuit & temperature control

Technical Specifications

• Model: BST-HPL-11000W
• Rated Power: 11000W
• Battery Voltage: 48VDC
• Output Voltage: 230VAC ±5%
• Waveform: Pure Sine Wave
• PV Voltage Range: 60–500VDC
• Max PV Voltage: 500VDC
• Max Charging Current: 150A
• AC Charging Current: 150A
• Efficiency (Peak): 98%
• Transfer Time: ≤10ms
• Operating Temperature: 0°C – 55°C
• Dimensions: 570 × 471 × 148 mm
• Weight: 19.3 kg
