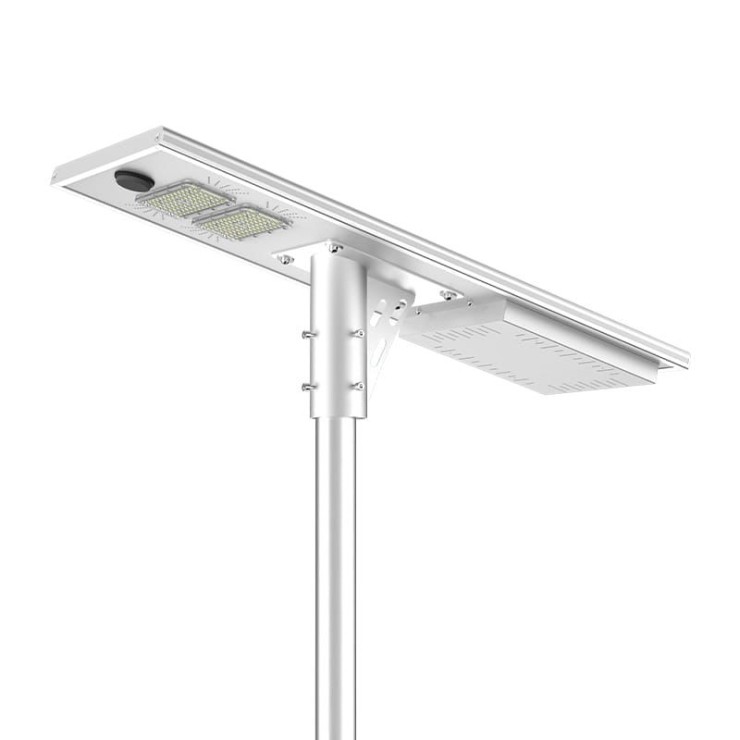

30W All-in-One Solar Street Light – Model: BST-AIO-4530P-S02

The BST-AIO-4530P-S02 is a compact, high-performance 30W all-in-one solar street light designed for efficient outdoor illumination. It combines the solar panel, LED light source, battery, and controller into a single, integrated unit for easy installation and maintenance. This model is suitable for roads, compounds, rural areas, and pathways, offering long lifespan and energy independence.

Key Features

·         High-Efficiency Seoul SMD3030 LED Chips: Provides superior brightness with 160–180 lm/W luminous efficiency and a lifespan exceeding 100,000 hours.

·         Smart Controller (IP68): Programmable for timer dimming and sensor operation, with built-in protection against overcharge, overdischarge, and short circuit.

·         Class A LiFePO₄ Battery: Ensures stable performance, ≥2000 cycles, and a lifespan of over 10 years.

·         High-Efficiency Monocrystalline Solar Panel: Offers >21% conversion efficiency and a 25-year lifespan.

·         Sturdy Aluminum Housing: Made from aluminum alloy + PC lens, resistant to corrosion and weathering (IP65 rated).

·         Excellent Light Distribution: 140° × 70° Type II beam angle ensures uniform road illumination.

·         Backup and Reliability: Provides 3–5 nights of lighting backup during cloudy or rainy days.

·         Smart Lighting Control: Automatic dusk-to-dawn operation, motion-sensing dimming, or timer-based brightness settings.

Technical Specifications

Parameter	Specification
Model	BST-AIO-4530P-S02
Rated Power	30W
LED Chip	SMD3030
Luminous Efficiency	160–180 lm/W
Color Temperature (CCT)	2700K–6000K
Color Rendering Index (CRI)	Ra > 70
Beam Angle	140° × 70° (Type II)
Solar Panel	45W / 18V Monocrystalline
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Battery Capacity	12.8V / 18Ah
Controller	Smart Controller (Timer + Sensor)
Backup Time	3–5 Nights
Charging Time	4–6 Hours (Under full sunlight)
Operating Temperature	-20°C ~ +60°C
Housing Material	Aluminum Alloy + PC Lens
Housing Color	Silvery Gray
IP Rating	IP65
LED Lifetime	>100,000 Hours
Lamp Size (mm)	768 × 360 × 30
Installation Height	3–4 meters (recommended)
Pole Distance	9–12 meters
Warranty	2 Years
