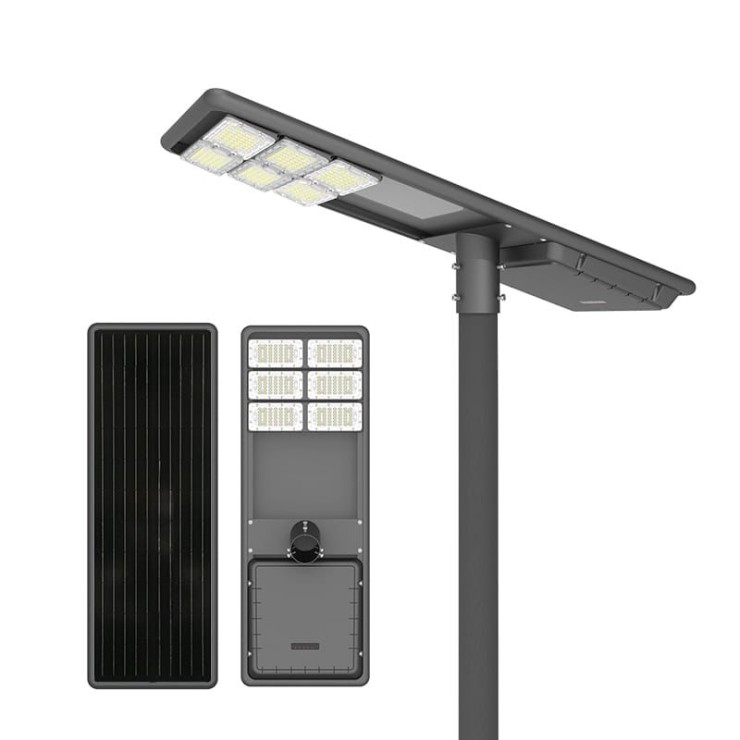

30W All-in-One Solar Street Light – Model: BST-AIO-4030P-S03

The BST-AIO-4030P-S03 is a high-efficiency 30W all-in-one solar street light designed for reliable outdoor illumination. It integrates the solar panel, lithium battery, LED module, and smart controller into one compact system for easy installation and maintenance. Ideal for street lighting, pathways, and residential areas, it provides long-lasting and energy-efficient performance.

Key Features

·         High-Efficiency LED Chips: Equipped with SMD3030 LED chips delivering 160–180 lm/W luminous efficiency and over 100,000 hours lifespan.

·         Smart Controller (IP68): Supports programmable timer dimming and automatic lighting modes with built-in protections against overcharge, overdischarge, and short circuit.

·         Long-Life Battery: Uses Class A LiFePO₄ lithium battery with over 2000 deep cycles and more than 10 years lifespan.

·         High-Efficiency Solar Panel: A-grade monocrystalline panel with >21% conversion efficiency and 25-year lifespan.

·         Adaptive Lighting Control: Adjustable brightness by time schedule; backup autonomy for 2–3 nights.

·         All-in-One Compact Design: Integrated aluminum alloy housing for durability and corrosion resistance.

·         Eco-Friendly and Maintenance-Free: Solar-powered operation with no cabling or grid connection required.

·         Customizable Settings: Lighting periods and brightness levels can be adjusted per project requirements.

Technical Specifications

Parameter	Specification
Model	BST-AIO-4030P-S03
Rated Power	30W
LED Chip	SMD3030 (42 pcs per module × 4 modules = 168 pcs total)
Luminous Efficiency	160–180 lm/W
Color Temperature (CCT)	3000K / 4000K / 5000K / 6500K
Color Rendering Index (CRI)	Ra > 70
Beam Angle	140° × 70° (Type II optic lens)
Solar Panel	40W Monocrystalline
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Battery Capacity	153.6 Wh
Controller	Smart Controller with Timer Dimming Function
Charging Time	4–6 Hours (under sufficient sunlight)
Discharge Time	2–3 Nights
Operating Temperature	-20°C ~ +60°C
Housing Material	Aluminum Alloy + PC Lens
IP Rating	IP65
LED Lifetime	>100,000 Hours
Warranty	2 Years
Lamp Size (mm)	740 × 368 × 75
Installation Height	3–5 meters (recommended)
Lighting Mode	Time Control / Auto Dimming / Smart Control
Customization	Available (brightness, timing, and design adjustments)
